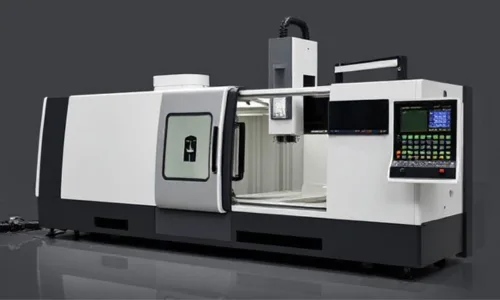

a900Z – Advanced 5-Axis Vertical Machining Center for Large Complex Parts
The a900Z is a powerful 5-axis vertical machining center designed for large, complex components requiring precision and dynamic performance. With simultaneous 5-axis control, high-speed spindles, and a rigid structure, it ensures superior accuracy, smoother surface finishes, and reduced cycle times—ideal for aerospace, energy, and heavy engineering industries.
| Parameter | Specification |
| Pallet Size | 800 mm |
| Travel (X / Y / Z) | X: 1,400 mm Y: 1,200 mm Z: 1,185–1,265 mm |
| B-Axis | 360° (Unlimited) – Direct Drive |
| C-Axis | 180° – Direct Drive |
| Spindle Speed (RPM) | 10,000 (std.) / 8,000 (opt.) / 15,000 (opt.) |
| Rapid Traverse Rate | 60,000 mm/min |
| Cutting Feedrate | 50,000 mm/min |
| Maximum Workpiece Size | Ø 1,250 mm x 1,000 mm High |
| Maximum Payload | 1,250 kg |
| ATC Capacity | 60 (std.) / 185 (opt.) |
| Tool Change Time (Tool to Tool) | 1.8 – 1.9 sec |
| Max. Tool Diameter | Ø 356 mm |
| Max. Tool Weight | 30 kg |
