Description

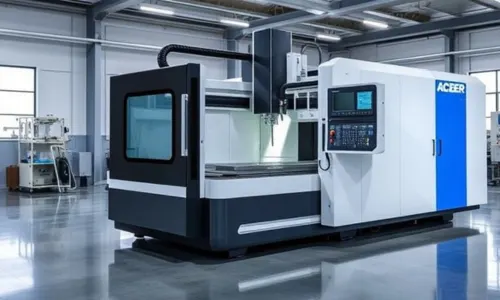

This high-speed, high-performance vertical machining center is built for high-volume production and reduced cycle times. It features high-speed spindles, rapid traverse rates, and low chip-to-chip time for efficient machining operations.
Equipped with a 24-tool automatic tool changer, the machine offers a table size of 1000 x 510 mm and stroke dimensions of 800 mm (X), 510 mm (Y), and 500 mm (Z). With spindle speeds up to 12,000 rpm, a rigid structure, and high-precision components, it ensures superior accuracy, reliability, and productivity in demanding manufacturing environments.
| Category | Specification |
| X Axis Travel | 800 mm |
| Y Axis Travel | 510 mm |
| Z Axis Travel | 500 mm |
| Distance from Spindle Face to Table Top | 170 – 670 mm |
| Table Size | 1000 x 510 mm |
| Max. Load on Table | 600 kg |
| Table Height from Floor | 925 mm |
| T-Slot Dimensions (n x w x p) | 5 x 18 x 100 mm |
| Tool Shank Type (Std. / Opt.) | BT-40 / HSK A63 |
| Spindle Speed – STD | 8000 rpm |
| Spindle Speed – OPT | Up to 12000 rpm |
| Spindle Power (Std. / Opt.) | 11.5 / 7.5 kW | 15 / 11 kW |
| Cutting Feed | 1 – 10000 mm/min |
| Rapid Traverse (X / Y / Z) | 50 / 50 / 40 m/min |
| Number of Tools (Std. / Opt.) | 24 / 30 / 40 |
| Max. Tool Diameter | 75 / 145 mm |
| Max. Tool Weight | 8 kg |
| Max. Tool Length | 250 mm |
| Tool Change System | Twin Arm |
| Pull Stud Type | MAS – 403 |
| Positioning Accuracy (ISO 230-2) | 0.010 mm |
| Repeatability (ISO 230-2) | ±0.003 mm |
| Control System | FANUC 0iMF+ / SIEMENS 828D / MITSUBISHI M80 |
| Machine Weight (Net) | 6000 kgf |
| Machine Dimensions (W x D x H) | 2200 x 3200 x 2650 mm |
