Description

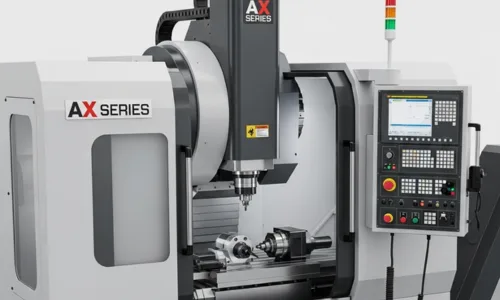

The AX Series delivers high accuracy and precision for complex machining of bar, shaft, and chucking components. Ideal for industries like automotive, instrumentation, hydraulics, electronics, and aerospace, these machines come in different frame sizes to suit varied production needs.
Featuring multitasking capabilities, the AX Series combines dual electro-spindles and a live tool turret with Y-axis for versatile machining operations. Its single-piece slant bed rigid structure minimizes floor space, reduces vibration, and enhances surface finish, providing excellent stability and precision even for hard part turning.
| Feature | Specification Unit | AX 200 / 200M / 200MY / 200MSY | AX 300 / 300M / 300MY / 300MSY |
| Swing Over Bed | mm | 550 | 650 |
| Std. Turning Diameter | mm | 330 – 370 | 420 – 465 |
| Max. Turning Diameter* | mm | 330 – 370 | 420 – 480 |
| Maximum Turning Length* | mm | 325 / 625 / 625 | 600 / 1200 / 625 |
| Chuck Diameter | mm | 200 | 250 |
| X-Axis Travel | mm | 200 | 250 |
| Y-Axis Travel | mm | NA / ±40 | NA / ±50 |
| Z-Axis Travel | mm | 325 / 625 / 625 | 625 / 1225 |
| Rapid Feed (X, Y & Z Axis) | m/min | 24 / NA / 30 or 24 / 24 / 30 | 24 / NA / 30 or 24 / 24 / 30 |
| Spindle Motor Power (Siemens/Fanuc) | kW | 9.15 | 20 |
| Spindle Speed Range | rpm | 4500 | 4000 |
| Spindle Nose | A26 | A28 | |
| Max. Bar Capacity | mm | 52 | 65 |
| Sub-Spindle Motor Power (Siemens/Fanuc) | kW | NA / 7.5 | NA / 9.15 |
| Sub-Spindle Speed Range | rpm | NA / 5000 | NA / 4500 |
| Sub-Spindle Nose | NA / A25 | NA / A26 | |
| Sub-Spindle Travel | mm | NA / 630 | NA / 620 |
| Turret Type | Servo / Live | Servo / Live | |
| Number of Stations | 12 | 12 | |
| Max. Boring Bar Diameter | mm | 40 | 50 |
| Tool Size (Cross Sectional) | mm | 25 x 25 | 25 x 25 |
| Live Tool Power (Siemens/Fanuc) | kW | NA / 4.8 / 4.5 | NA / 4.8 / 5.5 |
| Live Tool Speed (Siemens) | rpm | NA / 4500 | NA / 4500 |
| Live Tool Speed (Fanuc) | rpm | NA / 4500 | NA / 3000 |
| Live Tool Type | NA / VDI30 / BMT45 | NA / VDI40 / BMT55 | |
| Tailstock Type | Digital / NA | Digital / NA | |
| Tailstock Travel | mm | 330 / 630 / NA | 620 / 1220 / NA |
| Live Quill Taper | MT-5 / NA | MT-5 / NA | |
| Quill Diameter | mm | 130 / NA | 130 / NA |
| Thrust | kgf | 350 / NA | 500 / NA |
| Positioning Uncertainty (P) | mm | 0.005 | 0.005 |
| Repeatability (Ps medium) | mm | 0.003 | 0.003 |
| Machine Weight (Approx.) | kg | 4100 – 5000 | 6300 – 6700 |
| Machine Length (Approx.) | mm | 2610 – 3220 | 3490 – 4090 |
| Machine Width (Approx.) | mm | 1735 | 2000 |
| Machine Height (Approx.) | mm | 1960 | 2205 |
