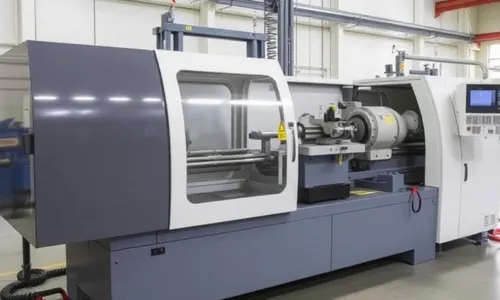

High-Speed CNC Chucker with Automation for Mass Production
This compact CNC chucker is designed for high-speed, automated manufacturing of small components like blanks and bearings. Built with a strong mono-block structure, it offers excellent stability and precision. The 2-axis configuration and efficient chip evacuation system ensure continuous, smooth operation.
Perfect for high-volume production, it can be easily integrated into multi-machine setups, making it ideal for automation lines. Its space-saving design, reliable performance, and productivity-enhancing features make it a smart choice for any modern manufacturing unit.
| Category | Specification |
| Chuck Size | Φ210 mm |
| Workpiece Dimension | Φ105 x 45 mm |
| X1-Axis Travel | 110 mm |
| Z1-Axis Travel | 200 mm |
| Rapid Feed (X1 / Z1 Axis) | 24 m/min |
| Number of Tools on X1 | 1 |
| X2-Axis Travel | 110 mm |
| Z2-Axis Travel | 200 mm |
| Rapid Feed (X2 / Z2 Axis) | 24 m/min |
| Number of Tools on X2 | 1 |
| Spindle Motor Power (Fanuc) | 11 / 9 kW |
| Spindle Motor Power (Siemens) | 14.4 / 11 kW |
| Spindle Speed Range | 50 – 4000 rpm |
| Spindle Nose | A2-6 |
| Loader Workpiece Dim. Capacity | Ø105 x 45 mm (max) |
| Max. Part Weight (One Side) | 2.5 kg |
| W (Front / Rear) Axis Stroke | 255 mm |
| W (Front / Rear) Axis Max Speed | 50 m/min |
| V (Up / Down) Axis Max Speed | 110 m/min |
| Jaw Stroke per Jaw (Loader Chuck) | 6 mm |
| Positioning Uncertainty (P) | 0.01 mm |
| Repeatability (Ps Medium) | 0.007 mm |
| Machine Weight (Approx.) | 2750 kg |
| Machine Dimensions (L x W x H) | 1544 x 1730 x 2600 mm |
