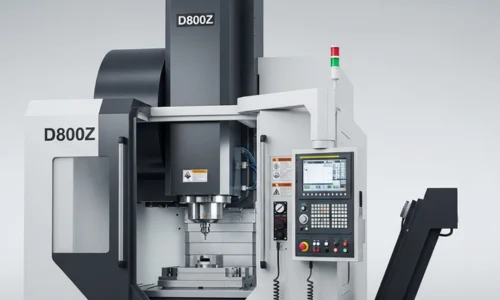

D800Z (40 Taper) – High-Precision 5-Axis Machining for Large Components
The D800Z is a powerful 5-axis vertical machining center designed for complex and large workpieces. With a 40 taper spindle, high rigidity, and simultaneous 5-axis control, it delivers precision and efficiency for mold, aerospace, and high-value part machining. Its robust design supports tight tolerances, smooth surface finishes, and reduced setup times for intricate components.
| Parameter | Specification |
|---|---|
| Table Size | Ø31.5″ |
| Travel (X / Y / Z) | X: 47.24″ Y: 43.30″ Z: 25.59″ |
| B-Axis Rotation | 180° (-180° to 0°) |
| C-Axis Rotation | 360° |
| Spindle RPM | 14,000 rpm (20,000 rpm optional) |
| Spindle Taper | CAT40 (HSK-A63 optional) |
| Rapid Traverse Rate | 1,417 ipm |
| Cutting Feedrate | 1,417 ipm |
| Maximum Workpiece Size | Ø39.4″ × 21.65″ (with limitations) |
| Maximum Payload | 2,646 lbs |
| ATC Capacity | 40 tools (80 optional) |
| Tool-to-Tool Time | 3 seconds |
| Chip-to-Chip Time | 9 seconds |
| Maximum Tool Diameter | 5.5″ (with limitations) |
| Maximum Tool Weight | 17.6 lbs |
| Optional ATC Capacity Available | Yes |
