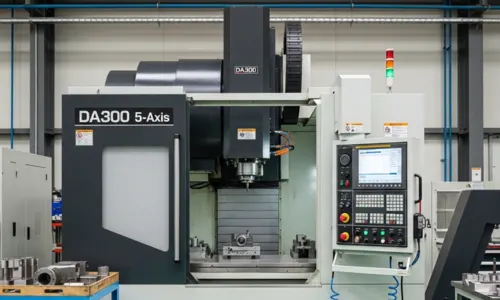

DA300 – Compact 5-Axis Vertical Machining Center for High Precision Work
The DA300 is a compact 5-axis vertical machining center ideal for high-speed, high-precision machining of complex parts. Designed with full 5-axis simultaneous motion, a rigid structure, and fast tool changes, it ensures excellent surface finish and reduced cycle times. Perfect for industries like aerospace, medical, and die-mold where precision and productivity are critical.
| Parameter | Specification |
|---|---|
| Table Size | 11.81″ x 13.38″ |
| Travel (X / Y / Z) | X: 17.7″ Y: 25.6″ Z: 19.7″ |
| A-Axis Rotation | 150° (+30° to -120°) |
| C-Axis Rotation | 360° |
| Spindle RPM | 20,000 rpm (HSK-A63) |
| Rapid Traverse Rate | 2,362 ipm |
| Cutting Feedrate | 2,362 ipm |
| Maximum Workpiece (Typical) | Ø17.7″ × 10.6″ (conditional) |
| Max Workpiece Size (Modes) | Standalone: Ø17.7″ × 15.7″ Manual w/ chuck: Ø17.7″ × 11.6″ WPS: □14.0″ × 11.6″ |
| Max Workpiece Weight (Modes) | Standalone: 551 lbs Manual w/ chuck: 474 lbs WPS: 177 lbs |
| Maximum Payload | 551 lbs |
| ATC Capacity | 60 tools (118 optional) |
| Chip-to-Chip Time | 3.5 seconds |
| Max Tool Diameter (All/Adj. Empty) | 2.76″ / 5.51″ |
| Max Tool Weight | 17.6 lbs |
| Optional ATC Capacity Available | Yes |
