Description

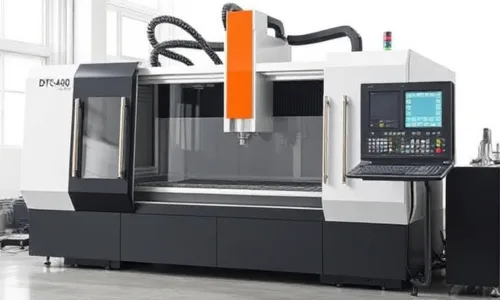

This compact and powerful drill tap machining center is designed to meet a wide range of machining applications. It features high-precision linear motion (LM) guideways, precision ball screws, and high rapid traverse speeds, enabling fast and accurate positioning for increased productivity.
The machine is equipped with a table measuring 750 mm x 400 mm and offers stroke dimensions of 500 mm (X-axis), 400 mm (Y-axis), and 320 mm (Z-axis). Its rigid structure, combined with precision-engineered components, ensures high accuracy and reliable performance, making it an excellent choice for precision machining in various industrial applications.
| Item | Specification |
|---|---|
| Travels (X/Y/Z) | 500 / 400 / 320 mm |
| Spindle to Table Dist. | 110 – 430 mm |
| Table Size | 650 × 400 mm |
| Max. Table Load | 400 kg |
| Table Height | 885 mm |
| Tool Shank | BT-30 / BBT-30 |
| Spindle Speed (Std.) | 80 – 8000 rpm |
| Spindle Speed (Opt.) | 100 – 10000 / 120 – 12000 rpm |
| Spindle Power (Std.) | 5.5 / 3.7 kW (15 min / cont.) |
| Spindle Power (Opt.) | 7.5 / 5.5 kW |
| Cutting Feed | 1 – 10 m/min |
| Rapid Traverse (X/Y/Z) | 48 / 48 / 40 m/min |
| ATC Tools | 12 |
| Tool Ø / Weight Max. | 80 mm / 2.5 kg |
| Tool Length Max. | 200 mm |
| Tool Changer | Disc Armless |
| Chip-to-Chip Time | 2.7 sec |
| Accuracy / Repeat. | 0.010 mm / ±0.003 mm |
| Control System | FANUC 0iMF+ (Standard) |
| Machine Dimensions (W×D×H) | 1700 × 2700 × 2300 mm |
| Machine Weight (Net) | 3200 kg |
