Description

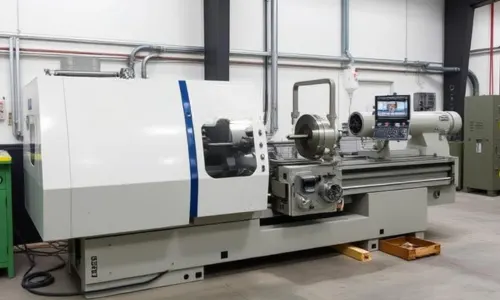

Gigaturn I is a heavy-duty CNC turning center designed for machining large and complex components with high precision. Ideal for industries like aerospace, energy, and heavy engineering, it ensures powerful performance, stability, and productivity.
| Category | Specification |
| Swing Over Bed | 680 mm |
| Chuck Size | 450 mm |
| Maximum Turning Diameter | 510 mm |
| Maximum Turning Length | 590 mm |
| Spindle Nose Type | A2-11 |
| Hole Through Spindle | 86 mm |
| Spindle Speed | 2000 rpm |
| Spindle Motor Power (Continuous / Intermittent) | 15 / 18.5 kW |
| Inclination of Carriage | 30° to Horizontal Plane |
| X-Axis Travel | 295 mm |
| Z-Axis Travel | 750 mm |
| Rapid Traverse (X / Z) Axes | 30 / 36 m/min |
| Number of Stations | 12 |
| Tool Shank Size | 25 x 25 mm |
| Maximum Boring Bar Diameter | Ø50 mm |
| Turret Indexing Type | Hydraulic |
| Turret Indexing Time | 1.2 sec |
| Quill Diameter | 85 mm |
| Quill Stroke | 120 mm |
| Quill Taper | MT-5 |
| Dimensions (L x B x H) | 2915 x 1875 x 2085 mm |
| Machine Weight | 5000 kg |
| Controller | Fanuc |
