Description
High-Performance Horizontal Machining Center for Versatile Manufacturing

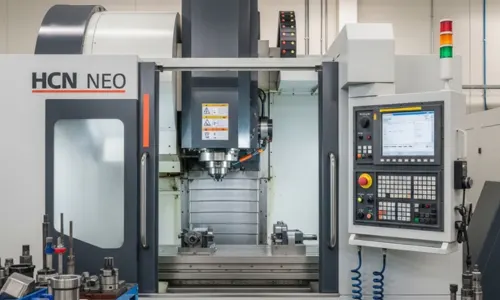

The HCN NEO is a robust horizontal machining center engineered for high-speed, precise machining of complex components. Its rigid construction and advanced features ensure excellent stability and accuracy, making it ideal for automotive, aerospace, and heavy engineering applications.
| Category | Specification |
|---|---|
| Models | HCN-4000 NEO, HCN-5000 NEO, HCN-6800 NEO |
| Pallet Dimension | HCN-4000 NEO: 15.75″ × 15.75″HCN-5000 NEO: 19.69″ × 19.69″HCN-6800 NEO: 24.8″ × 24.8″ |
| X / Y / Z Axis Stroke | HCN-4000 NEO: 22.05″ / 25.2″ / 25.2″HCN-5000 NEO: 28.74″ / 28.74″ / 31.5″HCN-6800 NEO: 41.34″ / 35.43″ / 38.58″ |
| Tool Shank | HCN-4000 NEO / HCN-5000 NEO: BI-PLUS No.40HCN-6800 NEO: CAT No.50 |
| Standard Spindle Speed | HCN-4000 NEO / HCN-5000 NEO: 12,000 rpmHCN-6800 NEO: 10,000 rpm |
| Standard Spindle Output | HCN-4000 NEO / HCN-5000 NEO: 18.5 kW (25 HP) [40% ED], 15 kW (20 HP) [Cont. rating], Max torque: 81.9 N·m [40% ED]HCN-6800 NEO: 45 kW (60 HP) [40% ED], 37 kW (50 HP) [Cont. rating], Spindle torque: 350 N·m [40% ED] |
| Optional Spindle Speeds & Outputs | HCN-4000 / 5000 NEO:– High Torque 15,000 rpm: 46 kW (62 HP) [40% ED], 37 kW (50 HP) [Cont. rating], Max torque: 200 N·m [40% ED]- High Speed 18,000 rpm: 35 kW (47 HP) [40% ED], 26 kW (35 HP) [Cont. rating], Max torque: 84 N·m [40% ED]- High Speed, High Output 20,000 rpm: 42 kW (56 HP) [40% ED], 26 kW (35 HP) [Cont. rating], Max torque: 161 N·m [40% ED]- Ultra-High Speed 25,000 rpm: 23 kW (31 HP) [40% ED], 15 kW (20 HP) [Cont. rating], Max torque: 22 N·m [40% ED]HCN-6800 NEO:– High Torque 8,000 rpm: 55 kW (73 HP) [25% ED], 45 kW (60 HP) [Cont. rating], Max torque: 1413 N·m [10% ED] |
