Description

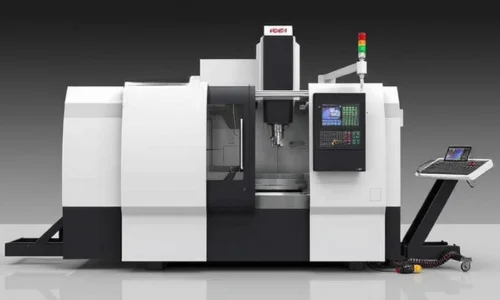

JG 50R is a robust CNC milling machine designed for high-speed and high-precision machining of complex parts. With enhanced rigidity and rotary capability, it is ideal for demanding applications in automotive, aerospace, and general engineering sectors.
| Category | Specification |
| X / Y / Z Axis Travel | 480 x 400 x 400 mm |
| Pallet Size | 550 x 380 mm |
| Max. Weight on Pallet | 300 kg |
| Pallet Indexing Time | 8 sec |
| Max. Spindle Speed | 12000 rpm |
| Spindle Bore Taper | HSK A50 |
| Spindle Motor Power (S1 / S2-30min / S3-25%) | 7.5 / 11 / 15 kW |
| Max. Spindle Torque (S1 / S2-30min / S3-25%) | 47.7 / 70 / 95.5 Nm |
| Rapid Traverse Rate (X / Y / Z) | 48 / 48 / 48 m/min |
| Guideways | LM Guides |
| Number of Tools | 26 |
| Max. Tool Length | 320 mm |
| Tool Change Time (Tool-to-Tool) | 1 sec |
| Floor Space | 6.7 m² |
| Controller | Fanuc |
