Description

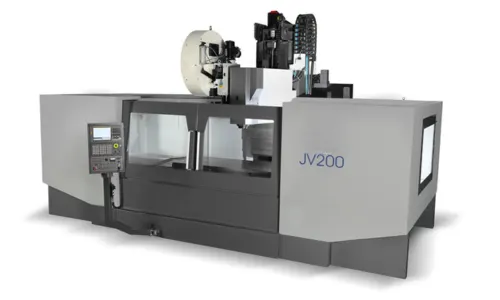

The JV 200 is a robust vertical machining center engineered for high-precision machining of large components. With its expansive work envelope and powerful spindle, it’s ideal for industries like automotive, aerospace, and general engineering.
Category | Specification |
| X / Y / Z Axis Travel | 2000 x 900 x 800 mm |
| Distance Between Spindle Nose & Table Top | 150 – 950 mm |
| Table Size | 2100 x 800 mm |
| Table Loading Capacity | 2500 kg |
| T Slot Size x Pitch | 7 x 18 x 115 mm |
| Spindle Speed | 4000 rpm |
| Spindle Bore Taper | BT 50 |
| Spindle Motor Power (Cont. / Inter.) | 15 / 18.5 kW |
| Max. Spindle Torque (Cont. / Inter.) | 107.4 / 177 Nm |
| Rapid Traverse Rate (X / Y / Z) | 20 / 20 / 15 m/min |
| Cutting Feed Rate | 10 m/min |
| Ball Screw Dia. x Pitch | ∅ 50 x 12 mm |
| Number of Tools | 20 |
| Tool Shank Configuration | BT-50 |
| Max. Tool Diameter (with Adjacent Tool) | 130 mm |
| Max. Tool Diameter (without Adjacent Tool) | 200 mm |
| Max. Tool Length | 400 mm |
| Max. Tool Weight | 20 kg |
| Tool Change Time (Tool to Tool) | 4 sec |
| Machine Size (L x B x H) | 5420 x 4700 x 3500 mm |
| Machine Weight | 17000 kg |
| Positioning Accuracy (X / Y / Z) | ±0.010 mm |
| Repeatability | ±0.005 mm |
| Controller | Mitsubishi / Siemens / Fanuc |
