Description

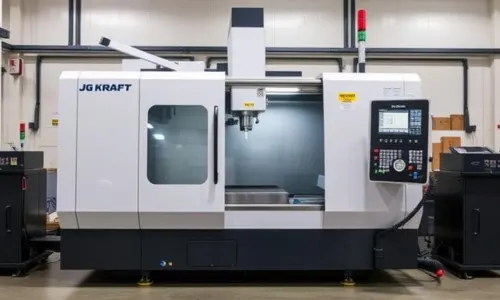

The JV Kraft is a high-performance 3-axis vertical machining center engineered for precision and productivity in machining small to medium-sized components. With a robust BT-40 spindle and a 20-tool automatic tool changer, it ensures efficient and accurate operations across various industrial applications.
| Category | Specification |
| X / Y / Z Axis Travel | 800 x 440 x 490 mm |
| Distance Between Spindle Nose & Table Top | 134 – 624 mm |
| Table Size | 1050 × 450 mm |
| Table Loading Capacity | 500 kg |
| T Slot Size x Pitch | 4 x 18 x 100 mm |
| Max. Spindle Speed | 6000 rpm |
| Spindle Bore Taper | BT 40 |
| Spindle Motor Power (Cont. / Inter.) | 7.5 / 11 kW |
| Max. Spindle Torque (Cont. / Inter.) | 48 / 93 Nm |
| Rapid Traverse Rate (X / Y / Z) | 36 / 36 / 24 m/min |
| Cutting Feed Rate | 10 m/min |
| Number of Tools | 20 |
| Tool Shank | BT-40 |
| Max. Tool Diameter (With Adjacent Tool) | 80 mm |
| Max. Tool Diameter (Without Adjacent Tool) | 125 mm |
| Max. Tool Length | 250 mm |
| Max. Tool Weight | 7 kg |
| Tool Change Time (Tool to Tool) | 2.5 sec |
| Machine Dimensions (L x B x H) | 2300 x 2715 x 2830 mm |
| Machine Weight | 4500 kg |
| Positioning Accuracy (X/Y/Z Axis) | 0.010 mm |
| Repeatability | ±0.003 mm |
| Controller | Mitsubishi / Siemens / Fanuc |
