Description

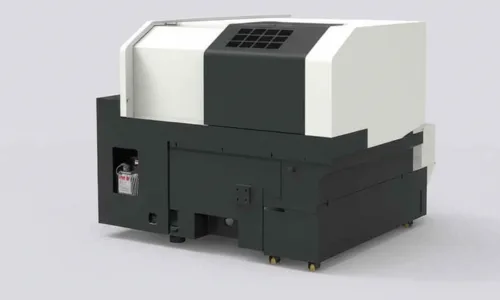

This horizontal turn-mill center is equipped with a sub-spindle and Y-axis, enabling advanced multi-tasking capabilities. It supports C-axis and Y-axis operations, allowing for a wide range of machining processes such as milling, drilling, tapping, and front/back-end turning—all in a single setup.
The sub-spindle features a built-in motor with a step-up design for smooth and powerful operation. Built on heavy-duty linear motion roller guideways, the machine accommodates components up to 386 mm in diameter and a maximum turning length of 570 mm, making it ideal for complex, high-precision manufacturing tasks.
| Category | Specification |
| Capacity | |
| Swing Over Bed | 630 mm |
| Swing Over Carriage | 400 mm |
| Maximum Turning Diameter | 386 mm |
| Maximum Turning Length | 570 mm |
| Distance Between Centres | — |
| Spindle | |
| Spindle Size / Nose | A2-6 |
| Max. Bar Capacity | 51 mm* |
| Bore Through Spindle | 63 mm |
| Max. Spindle Speed | 4000 rpm |
| Spindle Motor Power (Fanuc, Continuous) | 9 kW |
| Spindle Motor Power (Fanuc, 30 min) | 11 kW |
| Spindle Motor Power (Siemens, Continuous) | 9 kW |
| Spindle Motor Power (Siemens, S6-40%) | 13.5 kW |
| Full Power Range (FANUC) | 500 – 4000 rpm |
| Full Power Range (Siemens) | 475 – 3200 rpm |
| Standard Chuck Size | Refer quote |
| Sub-Spindle | |
| Sub-Spindle Size / Nose | Flat Nose Ø110 |
| Bore Through Sub-Spindle | 47 mm |
| Max. Sub-Spindle Speed | 4000 rpm |
| Sub-Spindle Motor Power (30 min) | 7.5 kW |
| Sub-Spindle Motor Power (Continuous) | 5.5 kW |
| Full Power Range (FANUC, Sub-Spindle) | 1200 – 4000 rpm |
| Full Power Range (Siemens, Sub-Spindle) | NA |
| Axes | |
| X-Axis Stroke | 198 mm |
| X-Axis Rapid Traverse | 30 m/min |
| X-Axis Guideways | LM Guideways |
| Z-Axis Stroke | 570 mm |
| Z-Axis Rapid Traverse | 30 m/min |
| Z-Axis Guideways | LM Guideways |
| Y-Axis Stroke | ±50 mm |
| Y-Axis Rapid Traverse | 10 m/min |
| Y-Axis Guideways | LM Guideways |
| Tooling | |
| Turret Type | VDI / BMT55 |
| Rotary Tool Motor Power | — |
| Number of Stations | 12 |
| Max. Boring Bar Diameter | Ø32 / (40) mm |
| OD Turning Tool Size | 20 x 20 / (25 x 25) mm |
| Tailstock | |
| Tailstock Base Travel | — |
| Tailstock Quill Diameter | — |
| Tailstock Quill Travel | — |
| Tailstock Quill Taper | — |
| Coolant System | |
| Coolant Tank Capacity | 300 litres |
| Hydraulic System | |
| Hydraulic Pump Capacity | 14 lpm |
| Hydraulic Power Pack Tank Capacity | 45 litres |
| Overall Dimensions | |
| Dimensions (L x W x H) | 3657 x 2000 x 1980 mm |
| Overall Weight (Without Packing) | ~5500 kg |
