Description

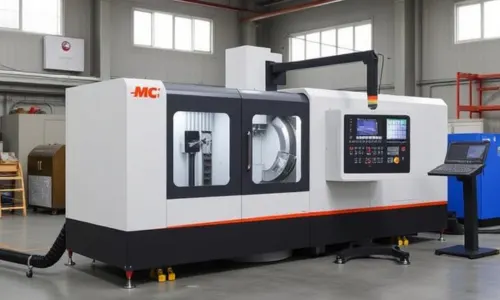

This high-performance and rigid machining center is well-suited for applications in the automotive, general engineering, die-mould, aerospace, and energy sectors. It features a BT-40 spindle and is available with a 24 or 30-tool side-mounted automatic tool changer for efficient tool management.
Built with high-precision roller guideways, precision ball screws, and a robust structure, the machine delivers exceptional accuracy, stability, and productivity. Its ergonomic design ensures ease of operation and maintenance.
To enhance flexibility and performance, the machine can be configured with linear or rotary pallet changers, 4th and 5th axis rotary tables, production systems, and full automation solutions.
| Category | Specification |
| Table Size | 900 x 450 mm |
| T-Slot (N x W x P) | 4 x 18 x 100 mm |
| Max. Load on Table | 400 kgf |
| Travels (X / Y / Z) | 600 / 450 / 500 mm |
| Spindle Face to Table Top | 175 – 675 mm |
| Spindle Nose Taper | 7 / 24 No.40 |
| Spindle Speed – STD | 6000 rpm |
| Spindle Speed – OPT | Up to 12000 rpm |
| Rapid Traverse (X/Y/Z) | 36 / 36 / 36 m/min |
| FANUC (0iMF+) | 7.5 / 5.5 (Opt 11 / 7.5) kW |
| Mitsubishi (M80) | 7.5 / 5.5 (Opt 11 / 7.5) kW |
| Siemens (828D) | 7.5 / 5.5 (Opt 7 / 10.5) kW |
| Number of Tools | 24 / 30 |
| Tool Change System | Twin Arm |
| Tool Shank Type | BT-40 |
| Linear Pallet Size | 650 x 430 mm (2) |
| Rotary Pallet Size | 700 x 450 mm (2) |
| Machine Width x Depth | 1.9 x 3.1 m |
| Machine Weight (Net) | 5100 kgf |
