Description

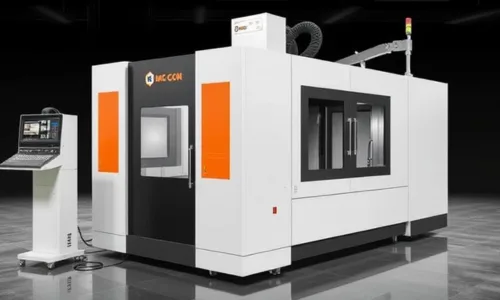

The MCV-450XL is a high-speed, high-performance vertical machining center designed for high-volume production with reduced cycle times. It features fast rapid traverse, high-speed spindles, and low chip-to-chip times for maximum efficiency.
Equipped with a 24-tool automatic tool changer, it has a table size of 1000 x 450 mm and stroke dimensions of 800 mm (X), 450 mm (Y), and 500 mm (Z). With spindle speeds up to 12,000 rpm and a rigid, precision-built structure, the machine delivers exceptional accuracy and productivity for demanding manufacturing applications.
| Category | Specification |
| Pallet Size | 800 x 450 mm (2) |
| T-Slot Dimensions (N x W x P) | 4 x 18 x 100 |
| Number of Pallets | 2 |
| Max. Weight on Pallet (Standard) | 300 kgf |
| Pallet Change Time | 12 sec |
| Pallet Height from Floor | 1085 mm |
| Travels (X / Y / Z Axis) | 800 / 450 / 500 mm |
| Distance from Spindle Face to Table Top (Std.) | 175 – 675 mm |
| Coolant Supply (Flood Coolant Around Spindle) | 50 lpm |
| Spindle Nose Taper | 7 / 24 No.40 |
| Spindle Speed – Direct Drive (Standard) | 120 – 12000 rpm |
| Spindle Bearing Diameter | 70 kW |
| Rapid Traverse (X / Y / Z Axes) | 40 / 40 / 40 mm/min |
| Cutting Feed | 1 – 10000 m/min |
| Guideways for X, Y & Z Axes | Linear Motion |
| Number of Tools (Standard) | 24 |
| Max. Tool Diameter (Standard / with 30 Tools ATC) | 80 mm |
| Max. Tool Diameter with Adjacent Pockets Empty | 155 mm |
| Tool Selection | Bi-Directional |
| Max. Tool Length | 250 mm |
| Max. Tool Weight | 8 kg |
| Chip to Chip Time | 4 sec |
| Tool Change System | Twin Arm |
| Tool Shank Type | BBT-40 |
| Positioning Accuracy (VDI DGQ 3441) | 0.015 mm |
| Positioning Accuracy (ISO 230-2) | 0.010 mm |
| Repeatability (VDI DGQ 3441) | ±0.005 mm |
| Repeatability (ISO 230-2) | ±0.003 mm |
| Spindle Power 30 Min / Continuous (Fanuc) | 15 / 11 kW |
| Feed Motor Torque (X, Y & Z Axes – Fanuc) | 20 / 20 / 36 Nm |
| Machine Weight (Net) | 5000 kgf |
| Power Supply for Basic Machine | 25 kVA |
| CNC Control (with 10.4″ Colour LCD) | FANUC 0i-MF |
| Pneumatic Pressure Required | 5 kgf/cm² |
| Pneumatic Supply Required at Atmospheric Pressure | 300 lpm |
