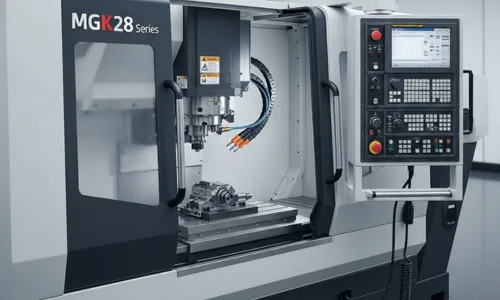

MGK28 Series CNC Vertical Multi-process Grinder
The MGK28 Series is a versatile CNC vertical grinder designed for multi-process grinding operations. Combining high precision with flexibility, it efficiently handles various grinding tasks such as surface, cylindrical, and profile grinding in a single setup. Its robust construction and advanced CNC controls ensure excellent accuracy and consistent surface finish, making it ideal for industries requiring complex component machining and high productivity.
| Model / Item | Unit | MGK2860 | MGK2880 | MGK28100 | MGK28100H | MGK28125 | MGK28160 | MGK28200 |
|---|---|---|---|---|---|---|---|---|
| Capacity of Processing | ||||||||
| Maximum Workpiece Grinding Diameter | mm | 750 | 850 | 1100 | 1100 | 1350 | 1800 | 2200 |
| Maximum Workpiece Height | mm | 400 | 400 | 500 | 1000 | 500 | 550 | 550 |
| Minimum Grinding Inner Hole | mm | 60 | 60 | 100 | 250 | 100 | 350 | 350 |
| Maximum Bearing Capacity of Workbench | kg | 600 | 800 | 2000 | 2000 | 2500 | 3000 | 5000 |
| Worktable | ||||||||
| Diameter of Working Table | mm | 600 | 800 | 1000 | 1000 | 1250 | 1600 | 2000 |
| Speed of Work Table | rpm | 200 | 200 | 60 | 60 | 60 | 50 | 40 |
| Precision of Rotating | mm | 0.0015 | 0.0015 | 0.002 | 0.002 | 0.002 | 0.003 | 0.003 |
| Spindle | ||||||||
| Maximum Spindle Speed of Vertical Grinding Wheel | rpm | 10000 | 10000 | 7000 | 6000 | 7000 | 3000 | 3000 |
| Vertical Grinding Wheel Spindle Power | kW | 11 | 11 | 15 | 15 | 15 | 18.5 | 22 |
| Maximum Spindle Speed of Horizontal Grinding Wheel | rpm | – | – | 2500 | – | 2500 | 2000 | 2000 |
| Horizontal Grinding Wheel Spindle Power | kW | – | – | 11 | – | 11 | 15 | 15 |
