Description

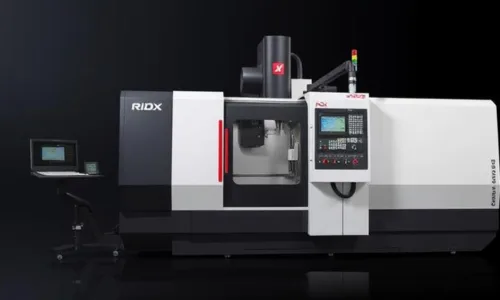

The RDX Series is specially engineered for high-precision die and mould applications. Designed with a robust one-piece base and a broad column structure made from graded cast iron, it ensures superior vibration damping and machining stability. A rigid saddle enhances performance during heavy-duty cutting and when handling large components.
Ideal for the growing die-mould industry, the RDX Series delivers consistent accuracy and high productivity for demanding machining tasks.
| Feature | RDX 10 | RDX 20 | RDX 30 |
| Table Size (mm) | 800 × 500 | 1000 × 530 | 1200 × 550 |
| T-Slot Dimensions (mm) | 4 × 14 × 100 | 4 × 18 × 100 | 5 × 18 × 100 |
| Distance from Floor to Table (mm) | 965 | 990 | 1025 |
| Max. Load on Table (kgf) | 500 | 600 | 1000 |
| X-Axis Travel (mm) | 600 | 820 | 1020 |
| Y-Axis Travel (mm) | 450 | 510 | 600 |
| Z-Axis Travel (mm) | 510 | 510 | 610 |
| Spindle Face to Table (Min.–Max., mm) | 150 – 660 | 125 – 635 | 125 – 735 |
| Rapid Traverse (X/Y/Z Axis, m/min) | 30 / 30 / 30 | 30 / 30 / 30 | 30 / 30 / 30 |
| Cutting Feed (m/min) | 10 | 10 | 10 |
| Spindle Speed Range (rpm) | 8000 | 8000 | 8000 |
| Spindle Motor Power – Siemens (kW) | 14.3 / 11 | 14.3 / 11 | 14.3 / 11 |
| Spindle Motor Power – Fanuc/Mitsubishi (kW) | 11 / 15 | 11 / 15 | 11 / 15 |
| Front Bearing Bore (mm) | 70 | 70 | 70 |
| Spindle Nose | BT 40 | BT 40 | BT 40 |
| Number of Tools | 20 | 20 | 20 |
| Max. Tool Dia. (All/Adj. Empty, mm) | 80 / 125 | 80 / 125 | 80 / 125 |
| Max. Tool Weight (kg) | 7 | 7 | 7 |
| Max. Tool Length (mm) | 250 | 250 | 250 |
| Positioning Uncertainty (P, mm) | 0.01 | 0.01 | 0.015 |
| Repeatability (Ps Medium, mm) | 0.005 | 0.005 | 0.007 |
| Machine Weight (Approx., kg) | 5374 | 5488 | 6500 |
| Machine Dimensions (L × W × H, mm) | 2710 × 2025 × 2750 | 2710 × 2025 × 2750 | 3950 × 2570 × 2950 |
