Description

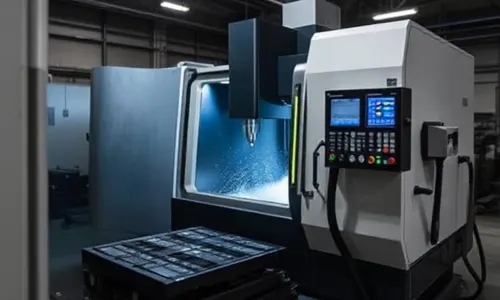

This compact vertical drill tap machining center is one of the smallest in its category, making it an ideal choice for mass production of small aluminum and cast iron components. Designed to maximize productivity in limited spaces, the machine occupies just 1400 mm x 2150 mm of floor area with a height of 2500 mm. Despite its compact footprint, it offers robust performance and can support a maximum table load of up to 150 kgf, making it a powerful and efficient addition to any modern workshop.
| Item | Spec |
| Table Size | 500×270 mm |
| Max. Table Load | 150 kg |
| Table Height | 840 mm |
| T-Slot | 3×14×80 mm |
| Tool Shank | BT-30 |
| Spindle Speed | 60–6000 / 80–8000 rpm |
| Spindle Power | 5.5 / 3.7 kW |
| Cutting Feed | 1–10000 mm/min |
| Rapid Traverse (X/Y/Z) | 25/25/18 m/min |
| ATC Tools | 8 |
| Tool Ø / Weight Max. | 80 mm / 2.5 kg |
| Tool Length Max. | 200 mm |
| Tool Changer | Twin Arm |
| Pull Stud | MAS-403 |
| Accuracy / Repeat. | 0.010 mm / ±0.003 mm |
| Control System | FANUC 0iMF+ |
| Machine Weight | 1800 kgf |
| Floor Space | 1350×1900 mm |
