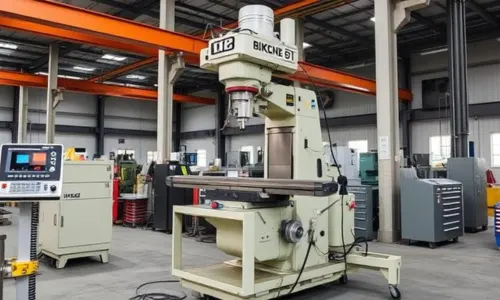

X63 Series Vertical Universal Milling Machine
The X63 Series Vertical Universal Milling Machine is designed for versatility and precision in metal cutting operations. With vertical and horizontal milling capabilities, it is ideal for machining flat, inclined, and complex surfaces in manufacturing and tool rooms. Rigid construction ensures durability, while adjustable speed and feed options offer flexibility for a wide range of milling tasks.
| Model | Table Size (mm) | Long Travel (mm) | Cross Travel (mm) | Vertical Travel (mm) | Spindle Taper | Spindle Speed (rpm) | Spindle Motor (kW) | Ram Travel (mm) | Gross Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| X6323A | 230×1067 | 650 | 305 | 400 | R8 / ISO30/40 | 65~4500 | 2.25 | 312 | 1000 |
| X6323B | 230×1246 | 840 | 305 | 400 | R8 / ISO30/40 | 65~4500 | 2.25 | 312 | 1000 |
| X6325A | 254×1270 | 810 | 380 | 400 | R8 / ISO30/40 | 65~4540 | 2.25 | 470 | 1250 |
| X6325 | 254×1370 | 910 | 400 | 400 | R8 / ISO30/40 | 65~4540 | 3.75 | 470 | 1400 |
| X6325D | 254×1370 | 840 | 400 | 400 | ISO40 | 65~4540 | 3.75 | 470 | 1400 |
| X6330A | 305×1370 | 870 | 360 | 380 | ISO40 | 65~4540 | 3.75 | 500 | 1500 |
| X6330 | 305×1500 | 1000 | 360 | 380 | ISO40 | 65~4540 | 3.75 | 500 | 1500 |
| X6333 | 330×1370 | 820 | 360 | 460 | ISO40 | 65~4540 | 3.75 | 500 | 1800 |
| X6330H/5 | 1370×305 | 900 | 400 | 400 | R8 / NT40 | 66~4540 | 3.7 | – | 1500 |
| X6330H/6 | 1370×305 | 900 | 400 | 400 | R8 / NT40 | 66~4540 | 3.7 | – | 1550 |
