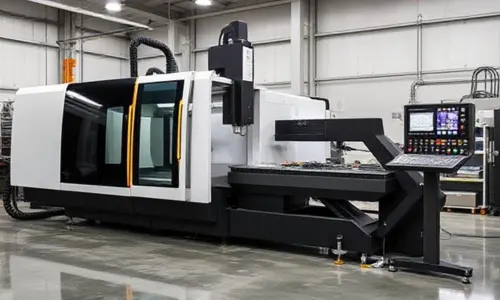

GV40 Drill-Tap Machining Centre
NewDrill-Tap Machining Centre

GV40 Drill-Tap Machining Centre

This high-performance, high-production drill-type machining center is designed for demanding manufacturing environments.

  • Travel400 / 300 / 250 mm
  • Table650 × 300 mm
  • TaperBT-30
  • Spindle80 – 8000 rpm
  • Tools8
Get price & availability WhatsApp Call
  • Configured to order – control, spindle and options to suit your part
  • Lead time and price confirmed in writing with your quote
  • Installation, commissioning and operator training available

Specifications

ItemSpecification
Travels (X/Y/Z)400 / 300 / 250 mm
Spindle to Table Dist.150 – 400 mm
Table Size650 × 300 mm
Max. Table Load200 kg
Table Height840 mm
T-Slot (n × w × p)3 × 14 × 100 mm
Tool ShankBT-30
Spindle Speed (Std.)80 – 8000 rpm
Spindle Power (Std.)5.5 / 3.7 kW
Cutting Feed1 – 10000 mm/min
Rapid Traverse (X/Y/Z)36 / 36 / 36 m/min
ATC Tools8
Tool Ø / Weight Max.80 mm / 2.5 kg
Tool Length Max.200 mm
Tool ChangerTwin Arm
Pull StudMAS-403
Accuracy / Repeat.0.010 mm / ±0.003 mm
Control SystemFANUC 0iMF+
Machine Weight (Net)2350 kgf
Floor Space1600 × 2000 mm

About this machine

This high-performance, high-production drill-type machining center is designed for demanding manufacturing environments. Featuring a compact gantry-style construction, it comes equipped with a high-speed, high-torque BBT-30 spindle or an optional 20,000 rpm direct-drive HSK A50 spindle. This setup makes it ideal for a wide range of machining applications in the automotive, aerospace, and general engineering sectors.

The machine includes a turntable interface with a rapid 5-second changeover time, AI-based servo tuning with feed-forward functionality, and smart spindle load control. These advanced features ensure exceptional machining accuracy, consistent performance, and enhanced productivity for high-volume component manufacturing.

Specifications are as provided by the manufacturer or seller. Please confirm the exact configuration with your quote.

Is a drill-tap machining centre right for your part?

Compact BT-30 machining centres built for fast drilling, tapping and light milling of aluminium and cast-iron parts.

Drill-tap centres use a light BT-30 spindle, fast tool change and high rapids to cut cycle times on aluminium and cast-iron parts with many holes and threads.

Send your part drawing, material and monthly quantity, and we will confirm whether this machine fits – or suggest one that fits better.

Questions buyers ask

What is the lead time for this machine?

New machines are built to order. We confirm the lead time and the exact configuration – control, spindle, tool changer and options – with your quote.

Drill-tap centre or VMC?

Choose a drill-tap centre when most of the cycle is drilling, tapping and light milling on small parts. Choose a BT-40 VMC for heavier milling and steel.

Can a drill-tap centre machine steel?

Yes, for light cuts, drilling and tapping. Heavy roughing in steel is better on a BT-40 or BT-50 machine.

What is BBT-30?

A dual-contact version of the BT-30 holder that touches the spindle face as well as the taper, improving rigidity and accuracy at high speed.

Is installation and training included?

Installation, commissioning and operator training are listed in the quote, so you know exactly what is included.
