- LS-04 LM CNC Turning Centre
NewCNC Turning Centre

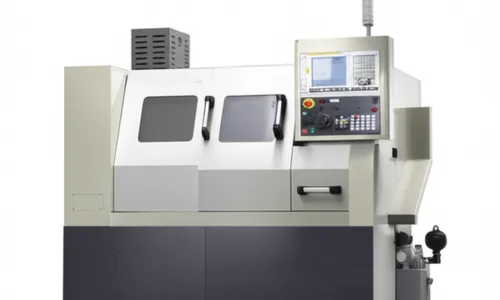

LS-04 LM CNC Turning Centre
This 2-axes slant bed horizontal CNC turning center is specifically designed for machining small disc-shaped components in chucking applications. Its compact footprint makes it ideal for small to medium-sized production setups.
- Turning Ø60 mm
- Turn length60 mm
- Bar Ø25 mm
- Spindle4000 rpm
- Travel200 mm
- Configured to order – control, spindle and options to suit your part
- Lead time and price confirmed in writing with your quote
- Installation, commissioning and operator training available
Specifications
| Category | Specification |
| Swing Over Bed | 300 mm |
| Swing Over Carriage | 170 mm |
| Maximum Turning Diameter | 60 mm |
| Maximum Turning Length | 60 mm |
| Max Turning Length from Chuck Face | — |
| Distance Between Centres | — |
| Spindle Size / Nose | Flat Nose |
| Max. Bar Capacity | 25 mm |
| Bore Through Spindle | 36 mm |
| Max. Spindle Speed | 4000 rpm |
| Spindle Motor Power (Fanuc, Continuous) | 3.7 kW |
| Spindle Motor Power (Fanuc, 15 min) | 5.5 kW |
| Spindle Motor Power (Fanuc, 30 min) | N/A |
| Spindle Motor Power (Siemens, Continuous) | 3.7 kW |
| Spindle Motor Power (Siemens, S6-25%) | — |
| Spindle Motor Power (Siemens, S6-40%) | 5.5 kW |
| Full Power Range (FANUC) | 1000 – 3000 rpm |
| Full Power Range (Siemens) | 1000 – 4000 rpm |
| Standard Chuck Size | — |
| X-Axis Stroke | 200 mm |
| X-Axis Rapid Traverse | 30 m/min |
| X-Axis Guideways | LM Guideways |
| Z-Axis Stroke | 100 mm |
| Z-Axis Rapid Traverse | 30 m/min |
| Z-Axis Guideways | LM Guideways |
| Turret Type | Linear (Gang Type) |
| Number of Tool Stations | 4 |
| Max. Boring Bar Diameter | 32 mm |
| OD Turning Tool Size | 20 x 20 mm |
| Tailstock Base Travel | — |
| Tailstock Quill Diameter | — |
| Tailstock Quill Taper | — |
| Coolant Tank Capacity | 30 litres |
| Hydraulic Pump Capacity | 12 lpm |
| Hydraulic Power Pack Tank Capacity | 20 litres |
| Overall Dimensions (L x W x H) | 1820 x 1540 x 1930 mm |
| Overall Weight (Without Packing) | ~1700 kg |
About this machine
This 2-axes slant bed horizontal CNC turning center is specifically designed for machining small disc-shaped components in chucking applications. Its compact footprint makes it ideal for small to medium-sized production setups.
The machine delivers 3.7 kW of continuous power and up to 5.5 kW for short-term operations (15 minutes). It comes standard with a 135 mm chuck and table-mounted gang tooling, ensuring efficient and precise machining for high-volume production needs.
Is a cnc turning centre right for your part?
2-axis CNC lathes, slant-bed turning centres and chuckers for shafts, flanges, bushes and other round parts.
Choose the chuck to grip your largest diameter, the turning length for your longest part, and bar capacity if you feed bar. Add a tailstock or steady rest for long shafts.
Send your part drawing, material and monthly quantity, and we will confirm whether this machine fits – or suggest one that fits better.
Questions buyers ask
What is the lead time for this machine?
New machines are built to order. We confirm the lead time and the exact configuration – control, spindle, tool changer and options – with your quote.
Which chuck size do I need on a CNC lathe?
One that grips your largest diameter securely. Most small and medium parts run on 165–250 mm chucks; flanges and larger discs need 300 mm or more.
What is a chucker?
A compact CNC lathe built for short, disc-type parts held in a chuck – bearing races, gear blanks, flanges – often with a loader for unmanned runs.
Should I choose a flat-bed or slant-bed lathe?
Slant-bed turning centres clear chips better, are more rigid and suit production. Flat-bed CNC lathes are simpler and cheaper for general work and large diameters.
Is installation and training included?
Installation, commissioning and operator training are listed in the quote, so you know exactly what is included.
