- SLANT TURN 500M CNC Turning Centre
NewCNC Turning Centre

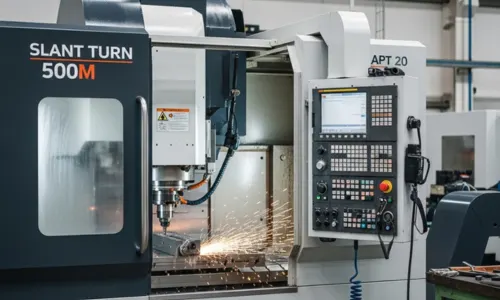

SLANT TURN 500M CNC Turning Centre
Heavy-Duty CNC Turning Center for Large Components The SLANT TURN 500M is a powerful slant-bed CNC turning center built for machining large, heavy components.
- Chuck18"
- Spindle1600 rpm
- Taper1"
- Configured to order – control, spindle and options to suit your part
- Lead time and price confirmed in writing with your quote
- Installation, commissioning and operator training available
Specifications
| Category | Specification |
|---|---|
| Machine Type | Universal Chucker |
| Capacity | |
| Max. Machining Diameter | Φ36″ |
| Max. Machining Length | 43″ |
| Spindle | |
| Chuck Size | 18″ |
| Max. Spindle Speed | 1600 rpm |
| Max. Torque (Low Speed) | 5163 ft-lbs |
| Spindle Motor (30 min. rating) | 45 kW (60 HP) |
| Spindle Motor (Continuous) | 37 kW (50 HP) |
| Spindle Bore | Φ7″ |
| Turret | |
| Tool Storage Capacity | 12 |
| Tool Shank Height | 1″ |
| Boring Bar Shank Diameter | Φ2″ |
| Rotary Tool Spindle | |
| Max. Spindle Speed | 4000 rpm |
| Max. Torque (4 min. rating) | 70 ft-lbs |
| Spindle Motor (4 min. rating) | 7.5 kW (10 HP) |
| Spindle Motor (Continuous) | 1.5 kW (2 HP) |
| Travel | |
| X-Axis | 18″ |
| Z-Axis | 46″ |
| Rapid Traverse Rate | |
| X-Axis | 787 IPM |
| Z-Axis | 945 IPM |
| Machine Dimensions | |
| Width × Length (SmoothG) | 224″ × 96″ |
| Height | 103″ |
| Machine Weight | 30,423 lbs |
About this machine
Heavy-Duty CNC Turning Center for Large Components
The SLANT TURN 500M is a powerful slant-bed CNC turning center built for machining large, heavy components. Designed with milling capability, it delivers excellent rigidity, high torque, and precision—ideal for oil & gas, energy, and heavy engineering industries.
Is a cnc turning centre right for your part?
2-axis CNC lathes, slant-bed turning centres and chuckers for shafts, flanges, bushes and other round parts.
Choose the chuck to grip your largest diameter, the turning length for your longest part, and bar capacity if you feed bar. Add a tailstock or steady rest for long shafts.
Send your part drawing, material and monthly quantity, and we will confirm whether this machine fits – or suggest one that fits better.
Questions buyers ask
What is the lead time for this machine?
New machines are built to order. We confirm the lead time and the exact configuration – control, spindle, tool changer and options – with your quote.
Which chuck size do I need on a CNC lathe?
One that grips your largest diameter securely. Most small and medium parts run on 165–250 mm chucks; flanges and larger discs need 300 mm or more.
What is a chucker?
A compact CNC lathe built for short, disc-type parts held in a chuck – bearing races, gear blanks, flanges – often with a loader for unmanned runs.
Should I choose a flat-bed or slant-bed lathe?
Slant-bed turning centres clear chips better, are more rigid and suit production. Flat-bed CNC lathes are simpler and cheaper for general work and large diameters.
Is installation and training included?
Installation, commissioning and operator training are listed in the quote, so you know exactly what is included.
