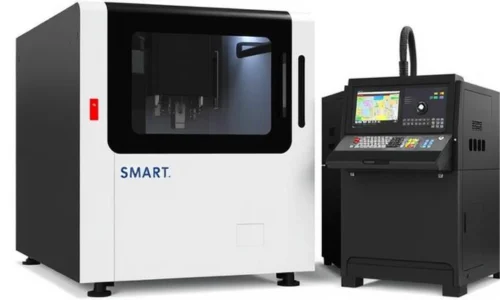

Smart Minimaster CNC Turning Centre
NewCNC Turning Centre

Smart Minimaster CNC Turning Centre

The SMART Series Turning Center is a compact, high-precision CNC lathe designed for efficient and accurate turning of small to medium-sized components.

  • Chuck135 mm
  • Turning Ø150 mm
  • Turn length200 mm
  • Spindle6000 rpm
  • Travel105 mm
Get price & availability WhatsApp Call
  • Configured to order – control, spindle and options to suit your part
  • Lead time and price confirmed in writing with your quote
  • Installation, commissioning and operator training available

Specifications

CategorySpecification
Swing Over Bed350 mm
Maximum Chuck Diameter135 mm
Maximum Turning Diameter150 mm
Maximum Turning Length200 mm
Admit Between Centres286 mm
Spindle Nose TypeFlat (Ø110 mm)
Hole Through Spindle36 mm
Maximum Spindle Speed6000 rpm
Spindle Motor Power (Continuous / S3 25%)3.7 / 5.5 kW (Delta)
Inclination of Carriage45° to Horizontal Plane
X-Axis Travel105 mm
Z-Axis Travel250 mm
Rapid Traverse (X / Z) Axes30 / 30 m/min
Number of Stations8
Tool Shank Size20 x 20 mm
Max. Boring Bar DiameterØ32 mm
Turret Indexing TypeHydraulic
Turret Indexing Time< 0.1 sec
Quill Diameter40 mm
Quill Stroke60 mm
Quill TaperMT-3
Tailstock Base Stroke130 mm
CNC ControllerDELTA
Dimensions (L x W x H)1575 x 1126 x 1700 mm
Machine Weight (Approx.)1800 kg
Footprint1.77 m²

About this machine

The SMART Series Turning Center is a compact, high-precision CNC lathe designed for efficient and accurate turning of small to medium-sized components. Ideal for high-volume production, it offers excellent reliability, speed, and surface finish in industrial machining applications.

Specifications are as provided by the manufacturer or seller. Please confirm the exact configuration with your quote.

Is a cnc turning centre right for your part?

2-axis CNC lathes, slant-bed turning centres and chuckers for shafts, flanges, bushes and other round parts.

Choose the chuck to grip your largest diameter, the turning length for your longest part, and bar capacity if you feed bar. Add a tailstock or steady rest for long shafts.

Send your part drawing, material and monthly quantity, and we will confirm whether this machine fits – or suggest one that fits better.

Questions buyers ask

What is the lead time for this machine?

New machines are built to order. We confirm the lead time and the exact configuration – control, spindle, tool changer and options – with your quote.

Which chuck size do I need on a CNC lathe?

One that grips your largest diameter securely. Most small and medium parts run on 165–250 mm chucks; flanges and larger discs need 300 mm or more.

What is a chucker?

A compact CNC lathe built for short, disc-type parts held in a chuck – bearing races, gear blanks, flanges – often with a loader for unmanned runs.

Should I choose a flat-bed or slant-bed lathe?

Slant-bed turning centres clear chips better, are more rigid and suit production. Flat-bed CNC lathes are simpler and cheaper for general work and large diameters.

Is installation and training included?

Installation, commissioning and operator training are listed in the quote, so you know exactly what is included.
