Description

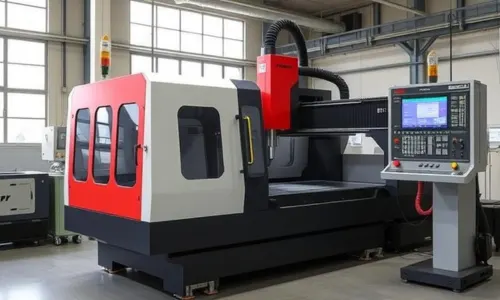

This compact and cost-effective machining center is ideal for mass production of small aluminum and cast iron components. Designed to fit efficiently in any workshop, it occupies a footprint of 1600 x 2000 mm with a height of 2350 mm. It comes equipped with a 20-tool side-mounted automatic tool changer and high rapid traverse speeds of 36 m/min as standard, offering both power and productivity in a space-saving design.
| Item | Specification |
| Travels (X/Y/Z) | 400 / 300 / 400 mm |
| Spindle to Table Distance | 125 – 525 mm |
| Table Size | 650 × 300 mm |
| Max. Table Load | 250 kg |
| Table Height from Floor | 840 mm |
| Tool Shank Type | BT-40 |
| Spindle Speed (Std.) | 6000 rpm (Up to 8000) |
| Spindle Power (Opt.) | 5.5 / 3.7 kW |
| Cutting Feed | 1 – 10000 mm/min |
| Rapid Traverse (X/Y/Z) | 36 / 36 / 36 m/min |
| ATC Tools | 20 |
| Tool Ø Max. | 80 / 100 mm |
| Tool Weight Max. | 8 kg |
| Tool Length Max. | 250 mm |
| Tool Changer Type | Twin Arm |
| Positioning Accuracy | 0.010 mm |
| Repeatability | ±0.003 mm |
| Control System | FANUC 0iMF+ |
| Machine Size (W×D×H) | 1600 × 2000 × 2350 mm |
| Machine Weight (Net) | 2200 kg |
