Description

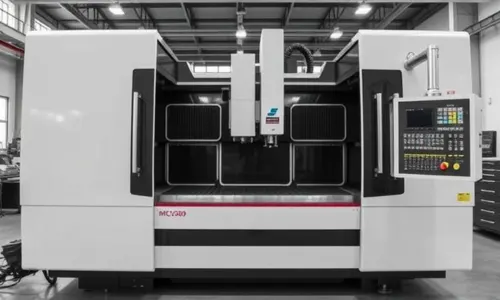

This high-efficiency, space-saving machining center is designed for machining small components up to a 300 mm cube. It features a BT-40 spindle taper, 12-tool automatic tool changer, and high rapid traverse rates for increased productivity. The machine includes a robust structure and a unique armless, bidirectional turret-type carousel for fast and reliable tool changes. Optional configurations include a linear pallet changer and through-coolant system (CTS) for enhanced automation and performance.
| Category | Details |
| Table Size | 650 × 350 mm |
| T-Slot (N × W × P) | 3 × 14 × 125 mm |
| Max. Load on Table | 400 kgf |
| Travel (X/Y/Z) | 400 / 350 / 320 mm |
| Spindle Face to Table | 135 – 455 mm |
| Spindle Taper | 7/24 No. 40 |
| Spindle Speed (Std./Opt) | 6000 rpm / Up to 10000 rpm |
| Rapid Traverse (X/Y/Z) | 40 / 40 / 40 m/min |
| Spindle Power | FANUC: 5.5 / 3.7 kW (Opt: 7.5 / 5.5) |
| Siemens: 5.5 / 3.7 kW | |
| ATC (Tool Changer) | 12 Tools, Disc Armless, BT-40 |
| Pallet Changer (Opt) | 500 × 325 mm (Linear Type, 2 Pallets) |
| Machine Size (W × D) | 1.7 × 2.8 m |
| Machine Weight | 3300 kgf |
