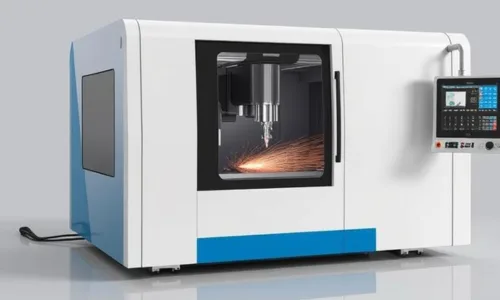

DTC-400L XL Drill-Tap Machining Centre
NewDrill-Tap Machining Centre

DTC-400L XL Drill-Tap Machining Centre

This powerful, large-format drill tap machining center features BT-30/BBT-30 spindles and a robust, optimally designed structure to handle cutting forces and ensure accurate high-speed tapping.

  • Travel700 / 400 / 320 mm
  • Table850 × 400 mm
  • TaperBT-30 / BBT-30
  • Spindle10000 rpm / up to 24000 rpm
  • Tools16 / 24
Get price & availability WhatsApp Call
  • Configured to order – control, spindle and options to suit your part
  • Lead time and price confirmed in writing with your quote
  • Installation, commissioning and operator training available

Specifications

ParameterSpecification
Travels (X / Y / Z)700 / 400 / 320 mm
Spindle Face to Table Distance140 – 460 mm
Table Size850 × 400 mm
Max Load on Table300 kg
Table Height from Floor850 mm
Tool Shank TypeBT-30 / BBT-30
Spindle Speed (Standard / Optional)10000 rpm / up to 24000 rpm
Spindle Power (Std / Opt)7.5 / 5.5 kW (Opt: 7.5 / 6 kW)
Cutting Feed1 – 10000 mm/min
Rapid Traverse (X / Y / Z)50 / 50 / 48 m/min
ATC (No. of Tools)16 / 24
Tool Diameter80 mm
Max Tool Weight2.5 kg
Max Tool Length200 mm
Tool Change SystemDisc Armless
Chip-to-Chip Time1.7 / 1.5 sec
Positioning Accuracy0.010 mm
Repeatability±0.003 mm
Control SystemFANUC 0iMF+
Machine Weight (Net)3600 kg

About this machine

This powerful, large-format drill tap machining center features BT-30/BBT-30 spindles and a robust, optimally designed structure to handle cutting forces and ensure accurate high-speed tapping. Built for cost-effectiveness without compromising rigidity, it includes roller-type LM guideways for improved stability and performance. The machine also comes with a high-speed pocket tilting automatic tool changer (16/24 tools) with a chip-to-chip time of 1.7 seconds, tailored for size and application needs.

Specifications are as provided by the manufacturer or seller. Please confirm the exact configuration with your quote.

Is a drill-tap machining centre right for your part?

Compact BT-30 machining centres built for fast drilling, tapping and light milling of aluminium and cast-iron parts.

Drill-tap centres use a light BT-30 spindle, fast tool change and high rapids to cut cycle times on aluminium and cast-iron parts with many holes and threads.

Send your part drawing, material and monthly quantity, and we will confirm whether this machine fits – or suggest one that fits better.

Questions buyers ask

What is the lead time for this machine?

New machines are built to order. We confirm the lead time and the exact configuration – control, spindle, tool changer and options – with your quote.

Drill-tap centre or VMC?

Choose a drill-tap centre when most of the cycle is drilling, tapping and light milling on small parts. Choose a BT-40 VMC for heavier milling and steel.

Can a drill-tap centre machine steel?

Yes, for light cuts, drilling and tapping. Heavy roughing in steel is better on a BT-40 or BT-50 machine.

What is BBT-30?

A dual-contact version of the BT-30 holder that touches the spindle face as well as the taper, improving rigidity and accuracy at high speed.

Is installation and training included?

Installation, commissioning and operator training are listed in the quote, so you know exactly what is included.
