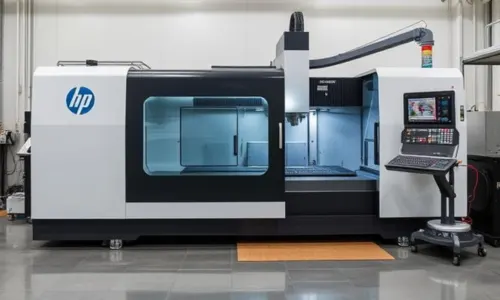

HP Series Horizontal Machining Centre
NewHorizontal Machining Centre

HP Series Horizontal Machining Centre

The HP Series is a next-generation horizontal machining center designed for high performance, built on the core principles of rigidity, precision, and dynamic efficiency.

  • Travel600 mm
  • Table400 × 400 mm
  • TaperBT 40 / HSK 63A
  • Spindle12000 rpm
  • Tools40
Get price & availability WhatsApp Call
  • Configured to order – control, spindle and options to suit your part
  • Lead time and price confirmed in writing with your quote
  • Installation, commissioning and operator training available

Specifications

FeatureSpecification
X-Axis Travel600 mm
Y-Axis Travel500 mm
Z-Axis Travel500 mm
Distance (Pallet Surface to Spindle Centre)100–600 mm
Distance (Pallet Centre to Spindle Nose)100–600 mm
Table Size400 × 400 mm
Max. Workpiece Size (Dia. × Height)650 × 750 mm
T-Slot Size4 × 14 × 100
Max. Table Load400 kg
Min. Table Indexing0.001°
Pallet Changing Time8 sec
Spindle TaperBT 40 / HSK 63A
Spindle Speed Range12000 rpm
Spindle Motor Power (Fanuc/Siemens)10.5 kW
Spindle Drive TypeElectro spindle
Rapid Traverse (X/Y/Z)60 m/min
Cutting Feed Rate30 m/min
No. of Tools40
Max. Tool Diameter (All / Adj. Empty)80 / 150 mm
Max. Tool Length400 mm
Max. Tool Weight8 kg
Tool Change Time1.8 sec
Positioning Uncertainty (P)0.01 mm
Repeatability (Ps Medium)0.005 mm
Machine Weight (Approx.)8300 kg
Machine Dimensions (L×W×H)5100 × 3220 × 2600 mm

About this machine

The HP Series is a next-generation horizontal machining center designed for high performance, built on the core principles of rigidity, precision, and dynamic efficiency. Engineered for demanding industrial environments, it delivers consistent accuracy, high-speed operations, and long-term reliability.

With robust construction and advanced features, the HP Series ensures improved machining efficiency and productivity, making it an ideal choice for high-volume and complex manufacturing tasks.

Specifications are as provided by the manufacturer or seller. Please confirm the exact configuration with your quote.

Is a horizontal machining centre right for your part?

HMCs with indexing tables and pallet changers, and horizontal boring machines for multi-face and heavy work.

HMCs machine several faces in one setup with an indexing table, clear chips well and – with a pallet changer – load the next part while the current one is cut. Horizontal boring machines handle large, heavy work.

Send your part drawing, material and monthly quantity, and we will confirm whether this machine fits – or suggest one that fits better.

Questions buyers ask

What is the lead time for this machine?

New machines are built to order. We confirm the lead time and the exact configuration – control, spindle, tool changer and options – with your quote.

Why choose an HMC over a VMC?

For multi-face parts and high volumes: an HMC reaches four sides in one setup, chips fall away from the work, and pallet changers keep the spindle busy.

What is an automatic pallet changer (APC)?

Two or more pallets that swap automatically, so the operator loads the next part while the machine cuts the current one.

Box guideways or linear guideways?

Box guideways damp vibration and suit heavy cutting; linear guideways give faster rapids and lower friction for high-speed production.

Is installation and training included?

Installation, commissioning and operator training are listed in the quote, so you know exactly what is included.
