NewDrill-Tap Machining Centre

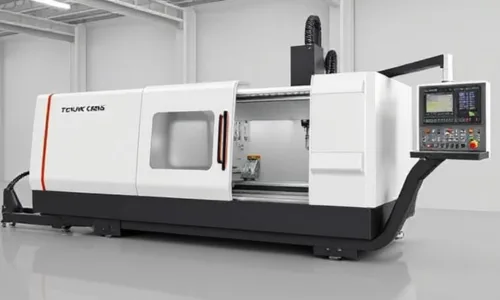

TCV-540 Drill-Tap Machining Centre
This compact and powerful vertical machining center with a turntable is specifically designed for high-speed drill tap operations and full milling capabilities.
- Travel500 / 400 / 320 mm
- Table760 × 400 mm (2)
- TaperBT-30 / BBT-30
- Spindle10000 / up to 15000 rpm
- Tools16
- Configured to order – control, spindle and options to suit your part
- Lead time and price confirmed in writing with your quote
- Installation, commissioning and operator training available
Specifications
| Item | Specification |
| Travels (X/Y/Z) | 500 / 400 / 320 mm |
| Spindle to Table Distance | 200 – 520 mm |
| Table Size | 760 × 400 mm (2) |
| Max. Table Load | 200 / 250* kg |
| Table Height | 850 mm |
| Tool Shank Type | BT-30 / BBT-30 |
| Spindle Speed (Std. / Opt.) | 10000 / up to 15000 rpm |
| Spindle Power (Std.) | 7.5 / 5.5 kW |
| Cutting Feed | 1 – 10000 mm/min |
| Rapid Traverse (X/Y/Z) | 50 / 50 / 50 m/min |
| ATC Tools | 16 |
| Tool Ø / Weight Max. | 80 mm / 2.5 kg |
| Tool Length Max. | 200 mm |
| Tool Changer Type | Disc Armless |
| Chip-to-Chip Time | 1.7 / 1.5* sec |
| Accuracy / Repeatability | 0.010 mm / ±0.003 mm |
| Control System | FANUC 0iMF+ |
| Machine Weight (Net) | 4500 kg |
About this machine
This compact and powerful vertical machining center with a turntable is specifically designed for high-speed drill tap operations and full milling capabilities. Its rigid structure and high-speed performance ensure excellent accuracy and productivity. Ideally suited for machining automotive and general engineering components.
Is a drill-tap machining centre right for your part?
Compact BT-30 machining centres built for fast drilling, tapping and light milling of aluminium and cast-iron parts.
Drill-tap centres use a light BT-30 spindle, fast tool change and high rapids to cut cycle times on aluminium and cast-iron parts with many holes and threads.
Send your part drawing, material and monthly quantity, and we will confirm whether this machine fits – or suggest one that fits better.
Questions buyers ask
What is the lead time for this machine?
New machines are built to order. We confirm the lead time and the exact configuration – control, spindle, tool changer and options – with your quote.
Drill-tap centre or VMC?
Choose a drill-tap centre when most of the cycle is drilling, tapping and light milling on small parts. Choose a BT-40 VMC for heavier milling and steel.
Can a drill-tap centre machine steel?
Yes, for light cuts, drilling and tapping. Heavy roughing in steel is better on a BT-40 or BT-50 machine.
What is BBT-30?
A dual-contact version of the BT-30 holder that touches the spindle face as well as the taper, improving rigidity and accuracy at high speed.
Is installation and training included?
Installation, commissioning and operator training are listed in the quote, so you know exactly what is included.
