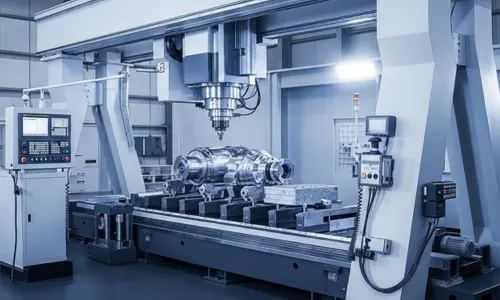

Bridge-Type 5-Axis Gantry Machining Centre
Bridge Type 5 Axis Gantry Machining Center is an advanced CNC machine designed for complex and precise multi-surface machining.
- Configured to order – control, spindle and options to suit your part
- Lead time and price confirmed in writing with your quote
- Installation, commissioning and operator training available
Specifications
| Item | Unit | HGM30 | HGM40 | HGM50 |
|---|---|---|---|---|
| Gantry Width | mm | 3950 | 4950 | 5950 |
| Table Width | mm | 3000 | 4000 | 5000 |
| Table Length | mm | 2000N (N≥2) | 2000N (N≥2) | 2000N (N≥2) |
| X-axis Travel | mm | 2000N + 200 | 2000N + 200 | 2000N + 200 |
| Y-axis Travel | mm | 3150 | 4150 | 5150 |
| Z-axis Travel | mm | 1250 | 1250 | 1250 |
| A-axis Travel | mm | ±110° | ±110° | ±110° |
| C-axis Travel | mm | ±360° | ±360° | ±360° |
| Max Distance: Table to Spindle Face | mm | 50 – 1300 | 50 – 1300 | 50 – 1300 |
| Loading Capacity | t/m² | 5 | 5 | 5 |
| T-slot Spec (Width × Spacing) | mm | 28 × 250 | 28 × 250 | 28 × 250 |
| Max Cutting Speed (X/Y/Z) | m/min | 12 / 12 / 12 | 10 / 10 / 10 | 10 / 10 / 10 |
| Rapid Traverse Speed (X/Y/Z) | m/min | 12 / 15 / 15 | 10 / 10 / 12 | 10 / 10 / 12 |
| Max Spindle Speed | rpm | 18000 | 10000 | 18000 |
| Spindle Power (Cont. / 30 min) | kW | 30 | 54 | 54 |
| Spindle Torque | N·m | 72 | 200 | 200 |
| Spindle Taper Hole | mm | HSK-A63 | HSK-A100 | HSK-A100 |
| Tool Magazine Capacity | 16 / 20 / 24 | 16 / 20 / 24 | 16 / 20 / 24 | |
| Max Tool Diameter (Full / Empty) | mm | Φ125 / Φ250 | Φ125 / Φ250 | Φ125 / Φ250 |
| Max Tool Length | mm | 350 | 350 | 350 |
| Max Tool Weight | kg | 20 | 20 | 20 |
| Positioning Accuracy (X/Y/Z) | mm | 0.015 / 1000 | 0.015 / 1000 | 0.015 / 1000 |
| Repeatability (X/Y/Z) | mm | 0.025 / 0.015 / 0.012 | 0.025 / 0.015 / 0.012 | 0.025 / 0.015 / 0.012 |
| Positioning Accuracy (A/C) | arc-sec (“) | 8 | 8 | 8 |
| Repeatability (A/C) | arc-sec (“) | 4 | 4 | 4 |
| CNC System | SINUMERIK ONE / HEIDENHAIN | SINUMERIK ONE / HEIDENHAIN | SINUMERIK ONE / HEIDENHAIN |
About this machine
Bridge Type 5 Axis Gantry Machining Center is an advanced CNC machine designed for complex and precise multi-surface machining. It features a rigid bridge structure and simultaneous 5-axis movement, allowing for high-precision operations on intricate components. This setup is ideal for aerospace, mold & die, and energy sectors where complex geometries and surface finishes are critical. With enhanced accuracy, flexibility, and stability, it significantly improves productivity and reduces setup time in high-precision manufacturing.
Is a gantry machining centre right for your part?
Double-column, bridge and moving-beam machines for large plates, frames, dies and long components.
Gantry, bridge and moving-beam machines carry the spindle over the work, so very large, heavy plates, frames and dies can be machined without a huge table travel.
Send your part drawing, material and monthly quantity, and we will confirm whether this machine fits – or suggest one that fits better.
Questions buyers ask
What is the lead time for this machine?
New machines are built to order. We confirm the lead time and the exact configuration – control, spindle, tool changer and options – with your quote.
What is a gantry machining centre used for?
Large plates, machine beds, frames, press tools, moulds and long components that will not fit on a VMC.
Moving column or moving table?
With a moving column or beam, the heavy part stays still – better for very large and heavy work and a smaller footprint for the length machined.
Do gantry machines need a special foundation?
Usually yes. We share the layout and foundation details with the quote so civil work can be planned early.
Is installation and training included?
Installation, commissioning and operator training are listed in the quote, so you know exactly what is included.
