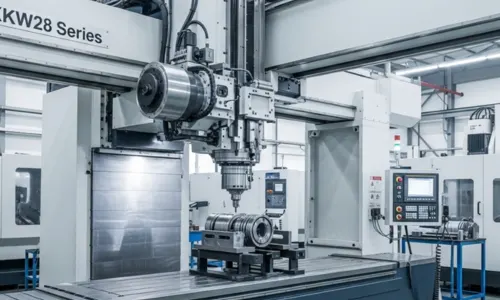

XKW28 Series CNC Moving-Beam Gantry Boring & Milling Machine
XKW28 Series CNC Moving Beam Gantry Moving Boring and Milling Machine is a high-performance machining solution designed for large-scale, precision-intensive components.
- Configured to order – control, spindle and options to suit your part
- Lead time and price confirmed in writing with your quote
- Installation, commissioning and operator training available
Specifications
| Category | Unit | XKW2842 | XKW2850 | XKW2863 |
|---|---|---|---|---|
| Gantry Width | mm | 4200 | 5000 | 6300 |
| X Travel | mm | 10800–20800 | 10800–20800 | 10800–20800 |
| Y Travel | mm | 5000 | 5800 | 7100 |
| Z Travel | mm | 1250 / 1500 | 1500 / 2000 | 1500 / 2000 |
| W Travel | mm | 2250 / 3250 | 2250 / 3250 | 4000 |
| Spindle to Table | mm | 200–3000 / 4000 | 200–5000 | 200–5000 |
| Table Size (W×L) | mm | 3000×10000–20000 | 4000×10000–20000 | 5000×10000–20000 |
| Table Load | T/m² | 15 | 15 | 15 |
| T-Slot (WxP) | mm | 36×250 | 36×250 | 36×250 |
| Ram Size | mm | 500×500 | 610×610 | 610×610 |
| Spindle Speed | rpm | 4000 / 3500 | 2000 / 1500 | 2000 / 1500 |
| Spindle Power | kW | 44 / 54 | 44 / 54 (51 / 68.4) | 44 / 54 (51 / 68.4) |
| Spindle Torque (Cont./30min) | Nm | 1825 / 2242 | 1825 / 2242 (3250 / 4358) | 1825 / 2242 (3250 / 4358) |
| Spindle Taper | BT50 | BT50 | BT50 | |
| Tool Magazine Capacity | 24 / 32 / 40 / 60 | 24 / 32 / 40 / 60 | 24 / 32 / 40 / 60 | |
| Tool Dia. (Full/Empty) | mm | Φ125 / Φ230 | Φ125 / Φ230 | Φ125 / Φ230 |
| Tool Length | mm | 350 | 350 | 350 |
| Tool Weight | kg | 25 | 25 | 25 |
| Total Power Supply | kVA | 120 | 120 | 140 |
| Machine Weight | T | 125–200 | 130–230 | 160–260 |
| Dimensions (L×W×H) | mm | 18000–28000×9000×8800 | 18000–28000×10000×8800 | 18000–28000×11500×10000 |
| CNC Control | Siemens 828D / FANUC 31i-MF | Siemens 828D / FANUC 31i-MF | Siemens 828D / FANUC 31i-MF |
About this machine
XKW28 Series CNC Moving Beam Gantry Moving Boring and Milling Machine is a high-performance machining solution designed for large-scale, precision-intensive components. Featuring a moving beam and gantry design, it allows for stable and efficient boring and milling operations on heavy workpieces. Its CNC control ensures high accuracy, repeatability, and multi-surface machining capabilities. Ideal for industries like shipbuilding, power generation, and heavy machinery, the XKW28 Series enhances productivity while maintaining exceptional machining quality.
Is a gantry machining centre right for your part?
Double-column, bridge and moving-beam machines for large plates, frames, dies and long components.
Gantry, bridge and moving-beam machines carry the spindle over the work, so very large, heavy plates, frames and dies can be machined without a huge table travel.
Send your part drawing, material and monthly quantity, and we will confirm whether this machine fits – or suggest one that fits better.
Questions buyers ask
What is the lead time for this machine?
New machines are built to order. We confirm the lead time and the exact configuration – control, spindle, tool changer and options – with your quote.
What is a gantry machining centre used for?
Large plates, machine beds, frames, press tools, moulds and long components that will not fit on a VMC.
Moving column or moving table?
With a moving column or beam, the heavy part stays still – better for very large and heavy work and a smaller footprint for the length machined.
Do gantry machines need a special foundation?
Usually yes. We share the layout and foundation details with the quote so civil work can be planned early.
Is installation and training included?
Installation, commissioning and operator training are listed in the quote, so you know exactly what is included.
