- Horizontal Boring Machine with Telescopic Boring Spindle
NewHorizontal Machining Centre
Horizontal Boring Machine with Telescopic Boring Spindle
Telescopic Boring Shaft Spindle (Horizontal Type) Ideal for deep boring and precision machining, the horizontal telescopic boring shaft spindle offers adjustable length and stable performance.
- Configured to order – control, spindle and options to suit your part
- Lead time and price confirmed in writing with your quote
- Installation, commissioning and operator training available
Specifications
| Parameter | Unit | THLC1000 | THLC1250 | THLC1500 |
|---|---|---|---|---|
| Table Size | mm | 1000×1000 | 1250×1250 | 1500×1500 |
| Max Loading Weight | kg | 3000 / 5000 | 3000 / 5000 | 80000 |
| T-Slot (No. × Width × Distance) | mm | 7×22×130 | 5×22×200 | 5×28×275 |
| Travel (X/Y/Z/M) | mm | 1800 / 1400 / 1400 | 1800 / 1400 / 1400 | 2500 / 1400 / 2000 |
| Boring Shaft (Dia. / W-axis Travel) | mm | 110 / 500 | 110 / 500 | 110 / 500 |
| Rapid Speed (X/Y/Z/W) | m/min | 20 / 12 / 12 / 12 | 10 / 10 / 12 / 12 | 9 / 9 / 9 / 9 |
| Cutting Speed (X/Y/Z) | mm/min | 1–5000 | 1–5000 | 1–5000 |
| Spindle Center to Table Surface | mm | 160–1560 | 160–1560 | 60–1460 |
| Spindle Nose to Table Center | mm | 260–1660 | 260–1660 | 320–2320 |
| Spindle Speed | rpm | 3500 | 3500 | 3500 |
| Spindle Power | kW | 22 / 26 | 22 / 26 | 22 / 26 |
| Max Spindle Torque | Nm | 770 | 770 | 770 |
| Tool Holder Type | — | BT50 | BT50 | BT50 |
| Pull Stud | — | BT50-45° | BT50-45° | BT50-45° |
| ATC Capacity | — | 30 | 30 | 30 |
| Tool Change Time | sec | 7.5 (Tool to Tool) | 7.5 (Tool to Tool) | 7.5 (Tool to Tool) |
| Max Tool Weight | kg | 15 | 15 | 15 |
| Max Tool Diameter (With/Without Adj.) | mm | Φ112 / Φ200 (Empty) | Φ112 / Φ200 (Empty) | Φ112 / Φ200 (Empty) |
| Air Pressure | MPa | 0.6–0.8 | 0.6–0.8 | 0.6–0.8 |
| Machine Weight (Approx.) | kg | 28000 | 30000 | 34000 |
| Machine Overall Size (L×W×H) | mm | 7400×5900×3820 | 7400×5900×3820 | 8200×6900×5000 |
About this machine

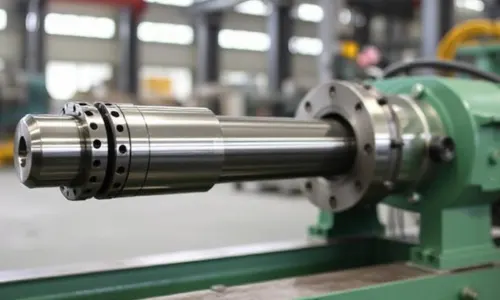

Telescopic Boring Shaft Spindle (Horizontal Type)
Ideal for deep boring and precision machining, the horizontal telescopic boring shaft spindle offers adjustable length and stable performance. Its rigid construction ensures accurate alignment and superior surface finish for large or deep-hole components, making it suitable for heavy-duty industrial applications.
Is a horizontal machining centre right for your part?
HMCs with indexing tables and pallet changers, and horizontal boring machines for multi-face and heavy work.
HMCs machine several faces in one setup with an indexing table, clear chips well and – with a pallet changer – load the next part while the current one is cut. Horizontal boring machines handle large, heavy work.
Send your part drawing, material and monthly quantity, and we will confirm whether this machine fits – or suggest one that fits better.
Questions buyers ask
What is the lead time for this machine?
New machines are built to order. We confirm the lead time and the exact configuration – control, spindle, tool changer and options – with your quote.
Why choose an HMC over a VMC?
For multi-face parts and high volumes: an HMC reaches four sides in one setup, chips fall away from the work, and pallet changers keep the spindle busy.
What is an automatic pallet changer (APC)?
Two or more pallets that swap automatically, so the operator loads the next part while the machine cuts the current one.
Box guideways or linear guideways?
Box guideways damp vibration and suit heavy cutting; linear guideways give faster rapids and lower friction for high-speed production.
Is installation and training included?
Installation, commissioning and operator training are listed in the quote, so you know exactly what is included.
